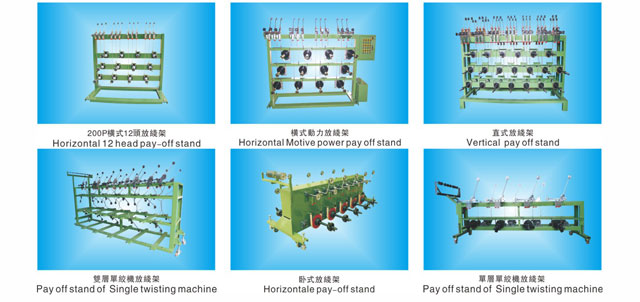

Vertical Tension Payoff Stand

The vertical tension pay-off stand is suitable for pay-off of stranded copper wire with multiple ends.

Performance Parameters

1. Coil size: outer diameter Φ 250mmX outer width Φ 200mm X inner diameter Φ 100mm;
2. Feed wire diameter: Φ 0.16~ Φ 0.25mm;
3. Tension control: air pressure control, adjustable tension;
4. Wire reel loading and unloading: shaft-type, manual loading and unloading of wire reel;
5. Pay-off speed: the speed is controlled by the signal transmitted by the displacement sensor to the frequency converter;
6 Main motor: electromagnetic brake motor;
7. Protection: automatic shutdown after disconnection;
8. Overall dimension: 1500 L x 1700 W x 800 H;
9. Weight: 500KG;
10. Painting: apple green.
