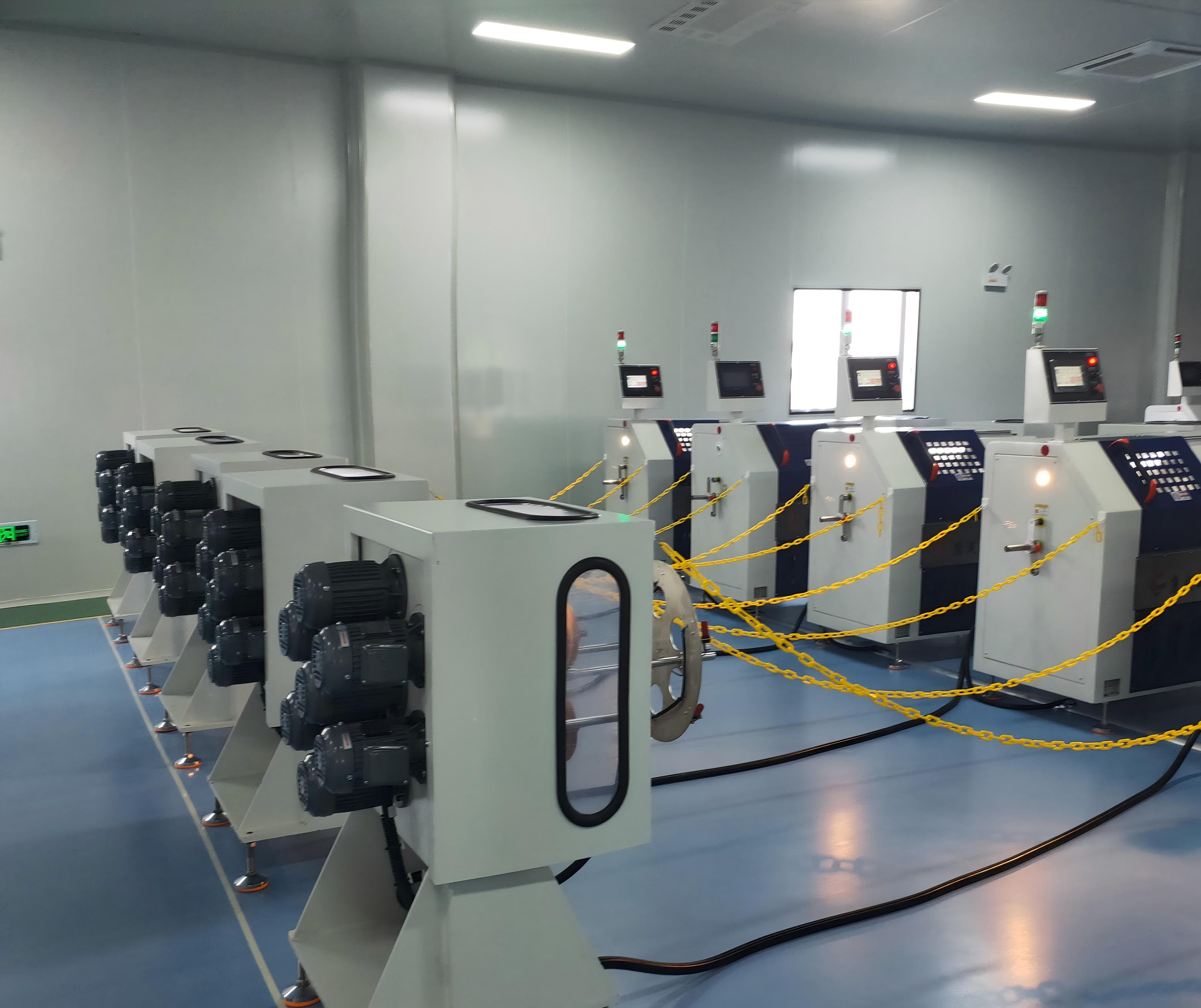

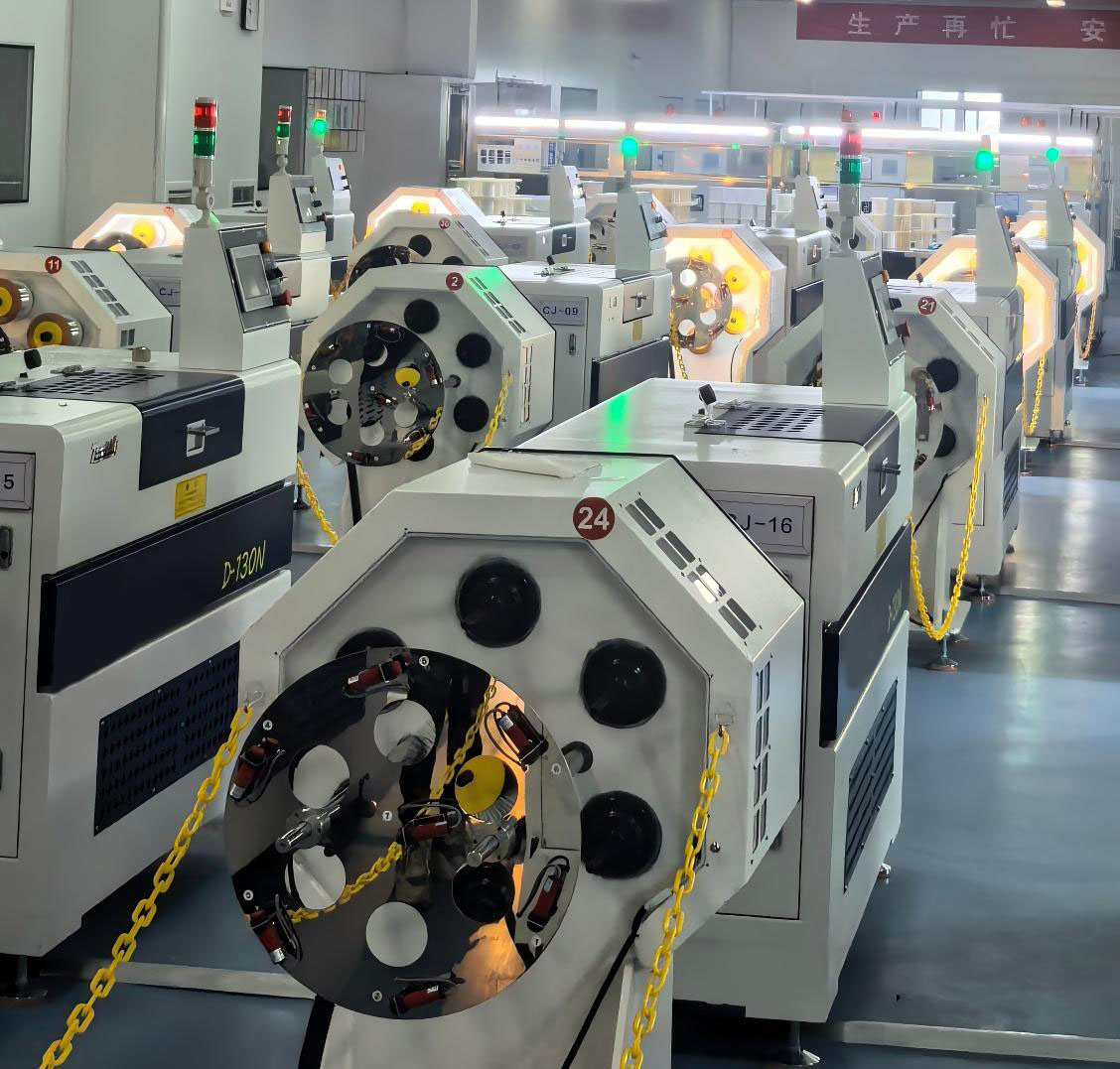

TY-130N Extremely Fine Wire Stranding Machine (0.02-0.03 mm)
TY-130N extremely fine wire stranding machine is suitable for 0.02 mm-0.03 mm fine wire.
2: The organic internal anti-twist function makes the stranded conductor not twist and straighten naturally;
3: The machine is easy to operate and maintain;
4: High-quality parts make the machine run more stably and have a longer service life;
5: The motor adopts frequency conversion control, which is easy to control the speed of rotation, and can be overload protected;
6: The standard parts supply and perfect later service will provide strong guarantee for the normal operation of your machine.
2. Machine speed: 3000 rpm (6000 rpm);
3. Strand diameter: 0.02mm-0.03mm;
4. Stranded sectional area: 0.025-0.03 (m㎡);
5. Strand length: 0.95-1.25 (mm) slip control, which can be changed according to customer requirements;
6. Coiling shaft: P-4LB (134mm);
7. Main motor: 1.5KW/2HP AC motor+frequency converter control;
8. Twisting direction: S direction;
9. Wire arrangement device: bare pole wire arrangement device, with adjustable wire arrangement, width arrangement and spacing;
10. Drive mode: frequency converter+PLC program controller+indication on touch screen;
11. Main shaft lubrication method: manual grease lubrication;
12. Safety protection: the door is not opened and cannot be started, and the meter reaches the automatic stop;
13. Noise index: below 80 dB;
14. Vibration index: below 30um (mmp-p)
15. Painting: main computer white (can be changed according to customer requirements).
Application & Performance
1: It is applicable to tinned copper wire, copper alloy wire and other extremely fine twisted wires;2: The organic internal anti-twist function makes the stranded conductor not twist and straighten naturally;
3: The machine is easy to operate and maintain;
4: High-quality parts make the machine run more stably and have a longer service life;
5: The motor adopts frequency conversion control, which is easy to control the speed of rotation, and can be overload protected;
6: The standard parts supply and perfect later service will provide strong guarantee for the normal operation of your machine.
Technical Parameters
1. Machine model: 130N;2. Machine speed: 3000 rpm (6000 rpm);
3. Strand diameter: 0.02mm-0.03mm;
4. Stranded sectional area: 0.025-0.03 (m㎡);
5. Strand length: 0.95-1.25 (mm) slip control, which can be changed according to customer requirements;
6. Coiling shaft: P-4LB (134mm);
7. Main motor: 1.5KW/2HP AC motor+frequency converter control;
8. Twisting direction: S direction;
9. Wire arrangement device: bare pole wire arrangement device, with adjustable wire arrangement, width arrangement and spacing;
10. Drive mode: frequency converter+PLC program controller+indication on touch screen;
11. Main shaft lubrication method: manual grease lubrication;
12. Safety protection: the door is not opened and cannot be started, and the meter reaches the automatic stop;
13. Noise index: below 80 dB;
14. Vibration index: below 30um (mmp-p)
15. Painting: main computer white (can be changed according to customer requirements).
