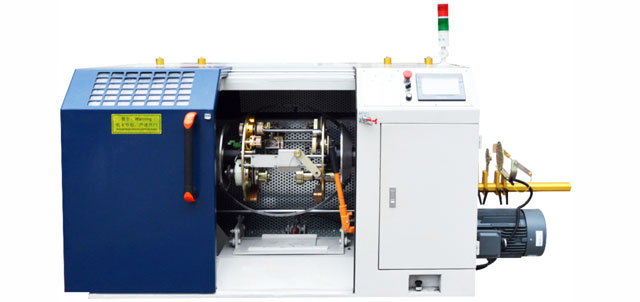

TY-300P High-speed Strander / Twister (3000/4000 rpm)

TY-300P high-speed stranding machine (3000/4000 rpm) is used for stranding copper wires such as computer cable, headphone cable, electronic cable, telephone cable and network cable.

Technical Parameters (300A)

1. Machine model: 300A;
2. Diameter of single strand: 0.05-0.28mm;
3. Stranded sectional area: 0.137-0.45m2;
4. Specification of take-up reel: 300mm;
5. Strand length: 1.34-12.5mm;
6. Pantograph revolution: 3000rpm (6000TPM);
7. Main motor: 3HP;
8. Twisting direction: S/Z;
9. Wire arrangement device: bearing type wire arrangement, width and distance can be adjusted;
10. Brake system: electronic brake;
11. Take-up tension: magnetic powder clutch controls take-up tension;
12. Noise index: about 75 dB;
13. Bearing: NSK, FAG, SKF;
14. Machine weight: about 930kg;
15. Machine size: 2060 * 1090 * 1250mm;
16. Lifting system: manual.

Technical Parameters (300B)

1. Machine model: 300B;
2. Diameter of single strand: 0.05-0.28mm;
3. Stranded sectional area: 0.137-0.45m2;
4. Specification of take-up reel: 300mm;
5. Strand length: 1.34-12.5mm;
6. Pantograph revolution: 4000rpm (8000TPM);
7. Main motor: 5HP;
8. Twisting direction: S/Z;
9. Wire arrangement device: bearing type wire arrangement, width and distance can be adjusted;
10. Brake system: electronic brake;
11. Take-up tension: magnetic powder clutch controls take-up tension;
12. Noise index: about 75 dB;
13. Bearing: NSK, FAG, SKF;
14. Machine weight: about 1150kg;
15. Machine size: 2060 * 1230 * 1120mm;
16. Lifting system: manual.
