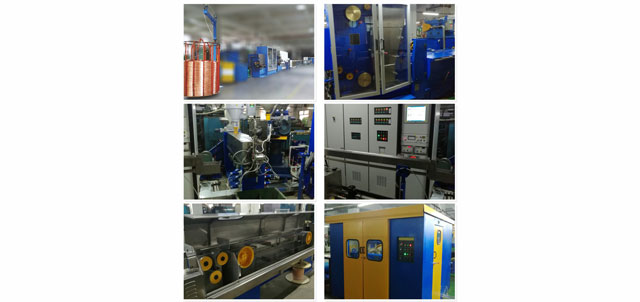

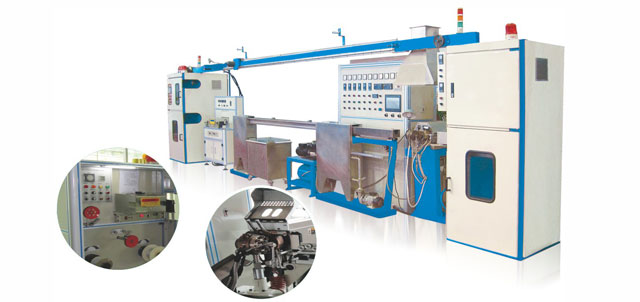

Teflon Ultra-fine High-frequency Data Core Wire Extrusion Line
Teflon extrusion production line is applicable to Teflon (ETPE/PTFE/FEP/FPA) ultra-fine core wire, Teflon ultra-fine high-frequency data core wire and coaxial line extrusion.
2. High quality: concentricity of extruded products: 93-97%; Outer diameter tolerance:+/-0.005;
3. Temperature control standard: SCR power controller, imported high-quality temperature control meter and cast copper heater are adopted, and the body temperature is controlled at+/- 1 ℃;
4. Easy operation: the user-friendly machine design and friendly operation interface make the machine operation simpler, more labor-saving and more convenient;
5. Small floor space: adopt integrated design, beautiful appearance, combine traditional pay-off, tension, preheating and straightening, and lead in and take in, and reduce the total length of box-type structure by more than 5M.
2. Purpose of the machine: applicable to Teflon ultra-thin core wire, Teflon ultra-thin high-frequency data core wire, coaxial line projection.
3. Core wire specification: AWG46~36&AWG44~32&AWG38~30&AWG34~28&AWG32~26;
4. Pledged materials: FEP FPA;

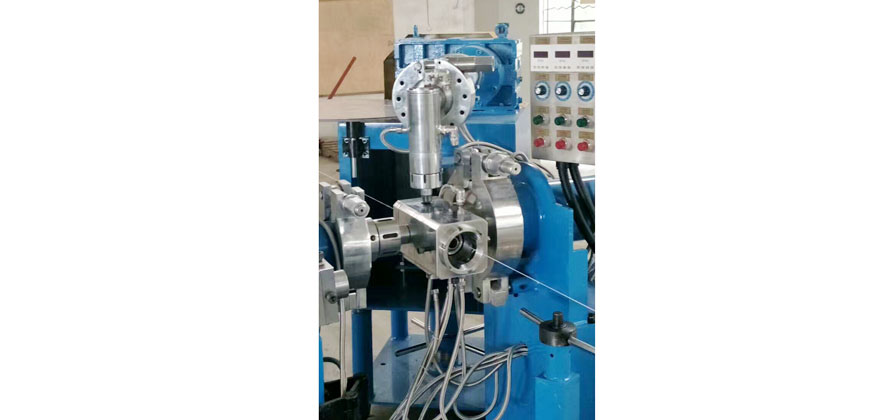

5. Screw parameters: length-diameter ratio 25:1, rotating speed: 10~50RPM, material: HASTELLOYC-276, corrosion resistance and high temperature resistance;
6. Number of temperature control sections (fuselage+nose): 5&6&6&6&6;
7. Body heating power: 2KW&2KW&3KW&3KW&4KW;
8. Main engine power: 5HP&5HP&7.5HP&10HP&15HP;
9. Maximum output: 2.5KG/H&4KG/H&6KG/H&7.5KG/H&10KG/H;
10. Maximum line speed: 10M-200M/MIN;

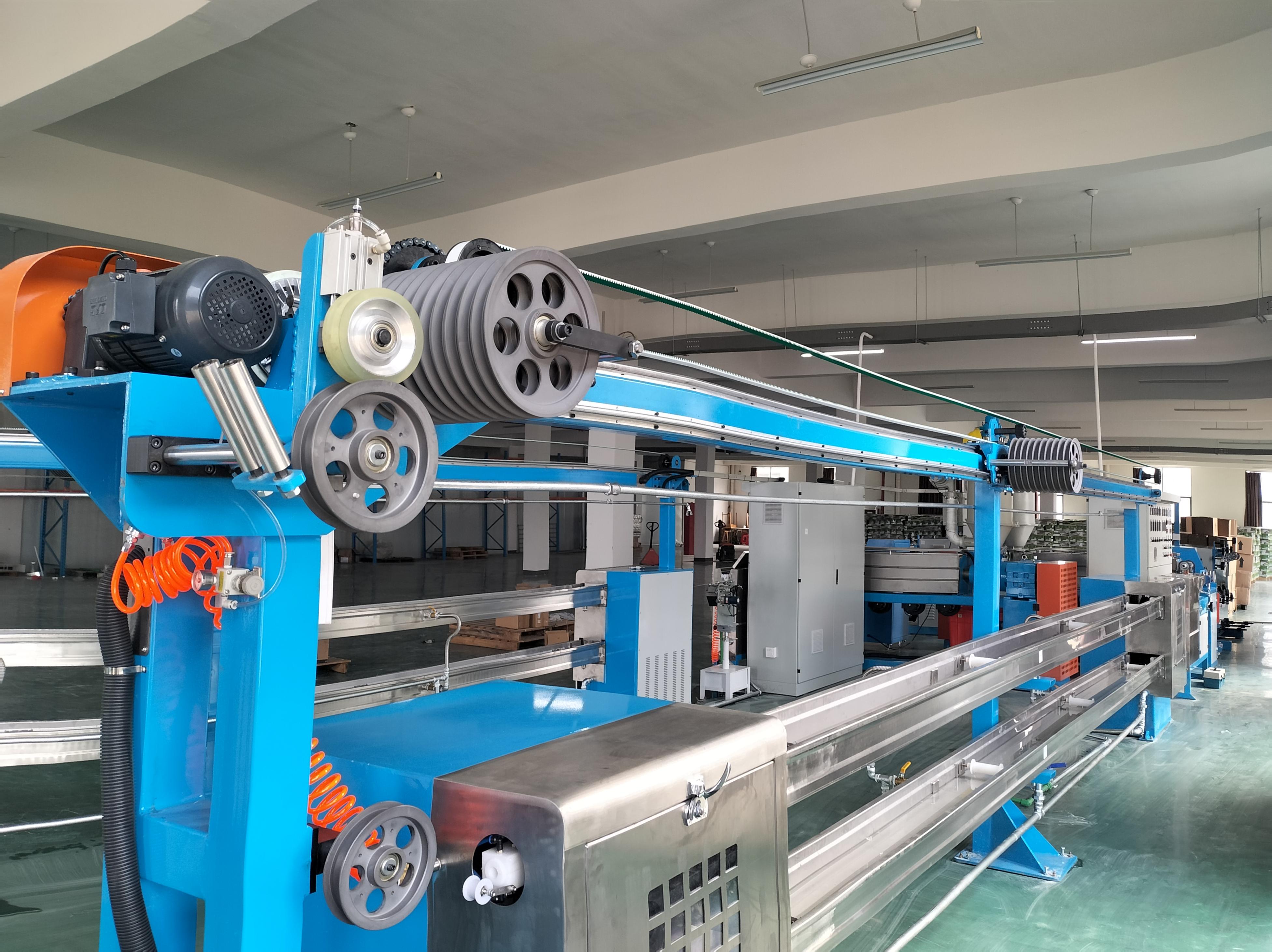

11. Line storage parameters: 80~120 alloy aluminum wheel, surface anodized, 11 grooves at fixed end+10 grooves at mobile end, horizontal line storage rack, 6 meters of rail length, 100 meters of storage line length, lightweight precision slide rail;
12. Extraction power: 2HP&2HP&3HP&3HP&5HP;

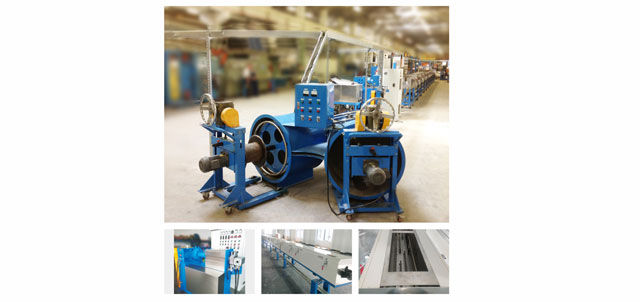

13. Pay-off type: single-head shaft-type power pay-off, swing rod slider-type tensioner, with wire break protection, applicable to 100-300 spool;
14. Take-up type: double-head shaft-type take-up, quick clamping and locking of spool, take-up speed can be linked with the main machine.
Machine Features
1. High precision: production of extremely fine core wire, precision design from paying-off to take-up, to ensure smooth connection and extrusion of core wire;2. High quality: concentricity of extruded products: 93-97%; Outer diameter tolerance:+/-0.005;
3. Temperature control standard: SCR power controller, imported high-quality temperature control meter and cast copper heater are adopted, and the body temperature is controlled at+/- 1 ℃;
4. Easy operation: the user-friendly machine design and friendly operation interface make the machine operation simpler, more labor-saving and more convenient;
5. Small floor space: adopt integrated design, beautiful appearance, combine traditional pay-off, tension, preheating and straightening, and lead in and take in, and reduce the total length of box-type structure by more than 5M.
Technical Parameters
1. Model: 15&20&25&30&402. Purpose of the machine: applicable to Teflon ultra-thin core wire, Teflon ultra-thin high-frequency data core wire, coaxial line projection.
3. Core wire specification: AWG46~36&AWG44~32&AWG38~30&AWG34~28&AWG32~26;
4. Pledged materials: FEP FPA;
5. Screw parameters: length-diameter ratio 25:1, rotating speed: 10~50RPM, material: HASTELLOYC-276, corrosion resistance and high temperature resistance;
6. Number of temperature control sections (fuselage+nose): 5&6&6&6&6;
7. Body heating power: 2KW&2KW&3KW&3KW&4KW;
8. Main engine power: 5HP&5HP&7.5HP&10HP&15HP;
9. Maximum output: 2.5KG/H&4KG/H&6KG/H&7.5KG/H&10KG/H;
10. Maximum line speed: 10M-200M/MIN;
11. Line storage parameters: 80~120 alloy aluminum wheel, surface anodized, 11 grooves at fixed end+10 grooves at mobile end, horizontal line storage rack, 6 meters of rail length, 100 meters of storage line length, lightweight precision slide rail;
12. Extraction power: 2HP&2HP&3HP&3HP&5HP;
13. Pay-off type: single-head shaft-type power pay-off, swing rod slider-type tensioner, with wire break protection, applicable to 100-300 spool;
14. Take-up type: double-head shaft-type take-up, quick clamping and locking of spool, take-up speed can be linked with the main machine.
